The merida eone-sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in merida's 50 year history.
The merida eone-sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in merida's 50 year history.
Merida

2022 Merida eOne-Sixty 700 MY22 Electric Bike in Red

£3,999.00 £5,750.00 30% off
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

2022 Merida eOne-Sixty 700 MY22 Electric Bike in Red

Season:2023

Brand:Merida

Code:P-N844

The merida eone-sixty is a hard-hitting enduro-ready ebike which has wowed the press worldwide and become the most decorated, tested and awarded bike in merida's 50 year history.

E-mountainbike gave it the 'best in test' in their 'best of 2021' emtb group test, world of MTB also gave it their 'best of 2021' award and freeride gave the 9000 the almost perfect score of 9.5 out of ten, just to mention a few.

The merida eone-sixty is built around compact Shimano steps motors, the Shimano design ethos is around natural riding, and the physical design of the motor allows merida designers to create very short chainstays which deliver agile and regular bike geometry. To give the e-full suspension bikes precise steering, fantastic rolling over obstacles behaviour yet maximum traction, we have combined a 29er front wheel with a 2.5 tyre and a 650b rear wheel, equipped with a slightly wider 2.6 tyre.

The perfect combination of precision, playfulness and traction allowing you to feel planted when tackling the most demanding of trails. Shimano's e-tube app allows you to tailor power delivery to suit your riding style, and even set two profiles, one for shredding and one for cruising.
Technical Information
  • Frame
    Lite III - Hydroformed 6061 Double butted aluminium with intergrated battery. Internal cable routing via Smart entry ports. Tapered head tube, 148 x 12mm axle standard. Max. tyre size 27.5 x 2.8.

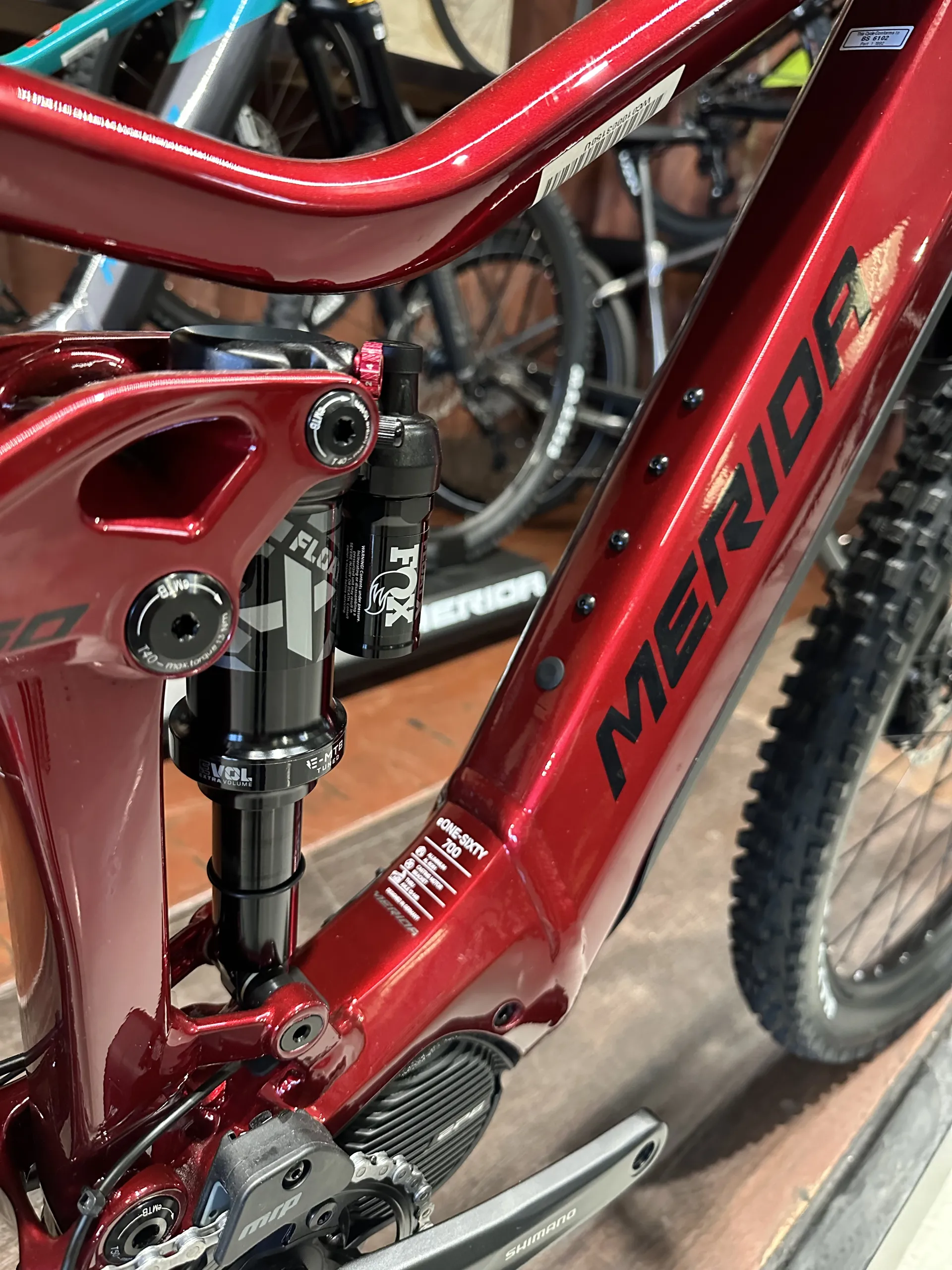

  • Rear Shock
    FOX Float DPX2 Performance; platform

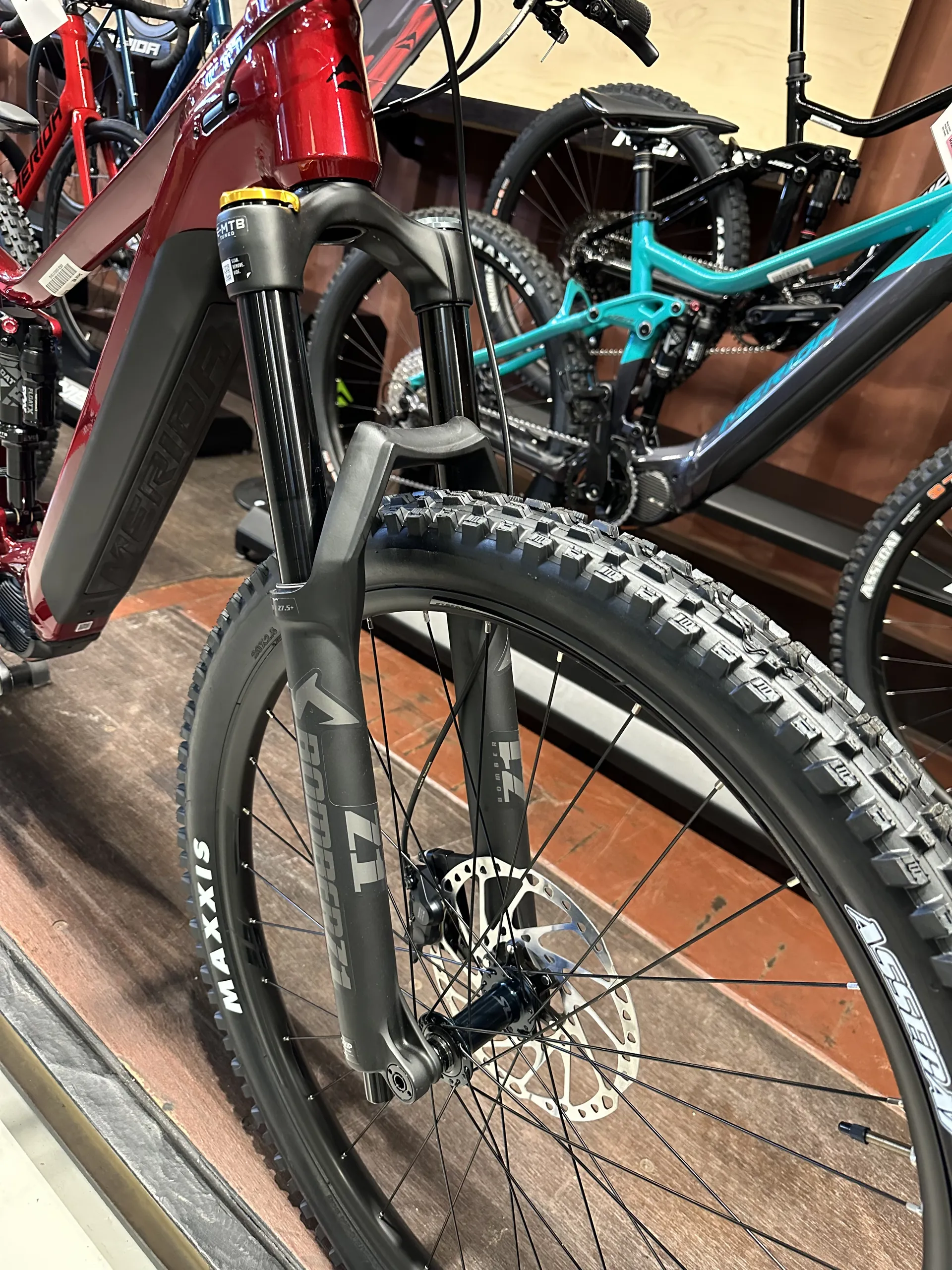

  • Fork
    Marzocchi Z1 Ebike+; Air; 160mm travel; Tapered; 51mm fork offset. Max. tyre size: 29 x 2.6
  • Headset
    Merida-8152
  • Stem
    Merida Expert eTRII; aluminium; 35mm diameter; 0 degree rise - Stem length: 40mm (all sizes). GoPro & Supernova mount point.
  • Handlebar
    Merida Expert eTR; 780mm wide; 20mm rise
  • Grip
    Merida Expert EC
  • Brake Type
    Hydraulic disc
  • Brake Lever
    Shimano SLX
  • Brake Calipers
    Front: Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RT64; 203 mm rotor Rear: Shimano SLX; 4 piston hydraulic disc brake caliper with Shimano RTEM600; 203 mm rotor
  • Tyres
    Front: Maxxis Assegai; 29 x 2.5; Kevlar bead; folding; TR EXO+ 3C MaxxGrip Rear: Maxxis DHR II; 27.5 x 2.6; Kevlar bead, folding; 3C EXO+ TR
  • Wheel Size
    29 / 27.5
  • Wheels
    Rims: Merida Expert TR; 29mm inner rim width; Aluminium; Tubeless ready (tubeless tape and valves not included) Spokes: Black stainless Front Hub: Shimano SLX; 110x15mm; 32 spokes; Center lock Rear Hub: Shimano SLX; 148x12mm, 36 spokes; Center lock; including removable lever with 4/6mm Allen key
  • Speeds
    12
  • Rear Derailleur
    Shimano XT RDM8100 Shadow+ 12
  • Shift Levers
    Shimano Deore SL-M6100 12 speed with Shimano SL -MT500-IL lever
  • Chain
    KMC e12T EPT
  • Cassette
    Shimano M6100; 10-51 teeth; 12 speed
  • Chainset
    Shimano CRE80-12-B; 34 tooth chainring with Shimano FCEM600; 165mm length crank
  • Bottom Bracket
    Part of Shimano Steps motor
  • Pedals
    VP Components, VPE-527
  • Saddle
    Merida Expert CC; V-mount including Merida multitool
  • Seat Post
    Merida Expert TR; 30.9mm diameter; in-line; Drop: 100mm (XS), 125mm (S), 150mm (M/L), 170mm (XL)
  • Motor
    Shimano E8036; 630Wh internal battery, Shimano Steps EP8; 85Nm
  • Battery Capacity
    630 Wh
  • eBike Display
    Shimano SC-E7000
