Trek

Trek Marlin 6 Gen 2

£650.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

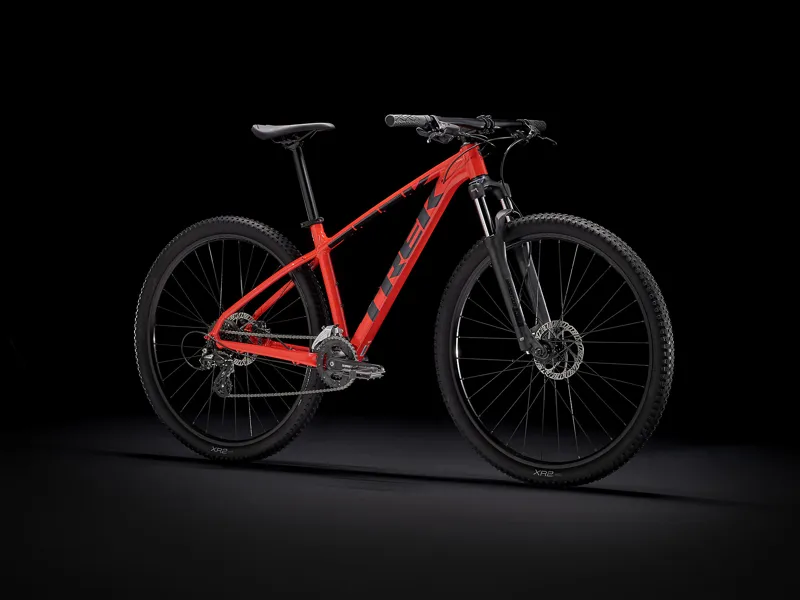

Trek Marlin 6 Gen 2

Season:2022

Brand:Trek

Code:104650

Technical Information
The Marlin 6 is a cross-country mountain bike built to give you an efficient off-road ride with a suspension fork that locks out, and a simple 1x drivetrain. It's made for mountain biking, but it's also equipped with features like rack and kickstand mounts that make it a great choice for adventurous daily commutes.

It's right for you if...

You're testing the waters of off-road riding, and want a real mountain bike at a great value, with a wide range of gears to cover more ground on the road and trail.

The tech you get

A lightweight aluminium frame with internal routing to protect your cables and add to the bike's sleek look, powerful hydraulic disc brakes and a simple 1x10 Shimano drivetrain that ditches the front derailleur for less clutter and easier operation. The wide-range cassette still gives you all the gears you need for big climbs and steep descents. Plus a suspension fork with a lever that lets you easily lock the suspension so you don't waste energy on smooth terrain.


The final word

The Marlin 6 gives you upgrades that you'll notice on every ride, like the smooth, simple shifting Shimano drivetrain. Extra-strong double-walled rims and powerful hydraulic disc brakes give you durability and stopping power for your most rugged adventures on the trail, in town, and everywhere in between.


Why you'll love it

  1. The 1x drivetrain gives you all the gears you need, and none you don’t
  2. Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
  3. The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount
  4. Rack and kickstand mounts make it easy to accessorise, so your mountain bike can double as a rugged commuter
  5. Like every Trek, it's backed by a lifetime warranty

Specifications

*spec applies to all sizes unless otherwise noted

Frameset
FrameAlpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*ForkSize: XS
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 80 mm travel
Size: S
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5" wheel, 100 mm QR, 100 mm travel
Size: M , ML , L , XL , XXL
SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 46 mm offset for 29" wheel, 100 mm QR, 100 mm travel
Hub frontFormula DC-20, alloy, 6-bolt, 5x100 mm QR
Hub rearFormula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
RimBontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
Spokes14 g stainless steel
*TyreSize: XS , S
Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20"
Size: M , ML , L , XL , XXL
Bontrager XR2 Comp, wire bead, 30 tpi, 29x2.20"
ShifterShimano Deore M4100, 10 speed
Rear derailleurShimano Deore M5120, long cage
CrankProwheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
Bottom bracketVP BC73, 73 mm, threaded cartridge
CassetteShimano Deore M4100, 11-46, 10-speed
ChainKMC X10, 10-speed
PedalVP-536 nylon platform
SaddleBontrager Arvada, steel rails, 138 mm width
*SeatpostSize: XS , S , M
Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
Size: ML , L , XL , XXL
Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*HandlebarSize: XS
Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
Size: S , M , ML , L , XL , XXL
Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
GripsBontrager XR Endurance Comp
*StemSize: XS
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
Size: S
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
Size: M
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
Size: ML , L
Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
Size: XL , XXL
Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head setSemi-integrated, 1-1/8"
*BrakeSize: XS , S
Tektro HD-M276 hydraulic disc, short-reach lever
Size: M , ML , L , XL , XXL
Tektro HD-M275 hydraulic disc
WeightM - 31.11 lb / 14.11 kg
Weight limitThis bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).


Sizing Information

All measurements provided in cm unless otherwise stated.

Frame size numberFrame size letterWheel sizeA — Seat tubeB — Seat tube angleEffective seat tube angleC — Head tube lengthD — Head angleE — Effective top tubeF — Bottom bracket heightG — Bottom bracket dropH — Chainstay lengthI — OffsetJ — TrailK — WheelbaseL — StandoverM — Frame reachN — Frame stack
13.5XS27.5"34.373.5°73.5°9.069.3°54.429.25.843.84.28.8104.965.837.656.5
15.5S27.5"36.873.5°73.5°9.069.3°55.530.24.843.84.28.8106.668.638.557.4
17.5M29"41.971.9°73.0°9.069.5°60.2315.843.84.29.3110.074.841.860.2
18.5ML29"44.471.9°73.0°9.069.5°61.8315.843.84.29.3111.675.843.460.2
19.5L29"47.071.9°73.0°10.069.5°63.8315.843.84.29.3113.775.745.161.1
21.5XL29"52.171.9°73.0°12.069.5°65.9315.843.84.29.3115.976.946.663.0
23.0XXL29"55.971.9°73.0°12.069.5°67.331.15.843.84.29.3117.380.448.063.0
