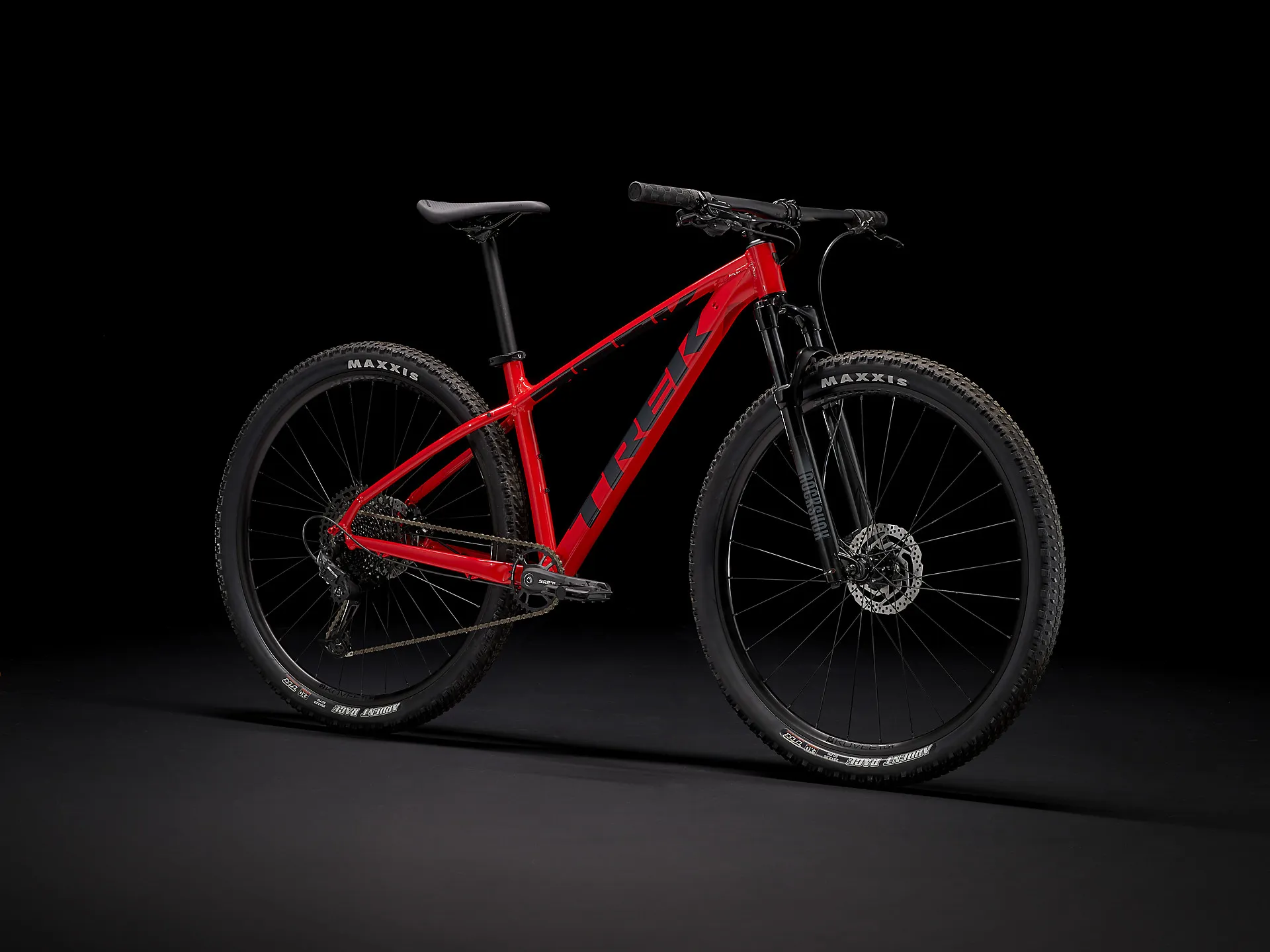

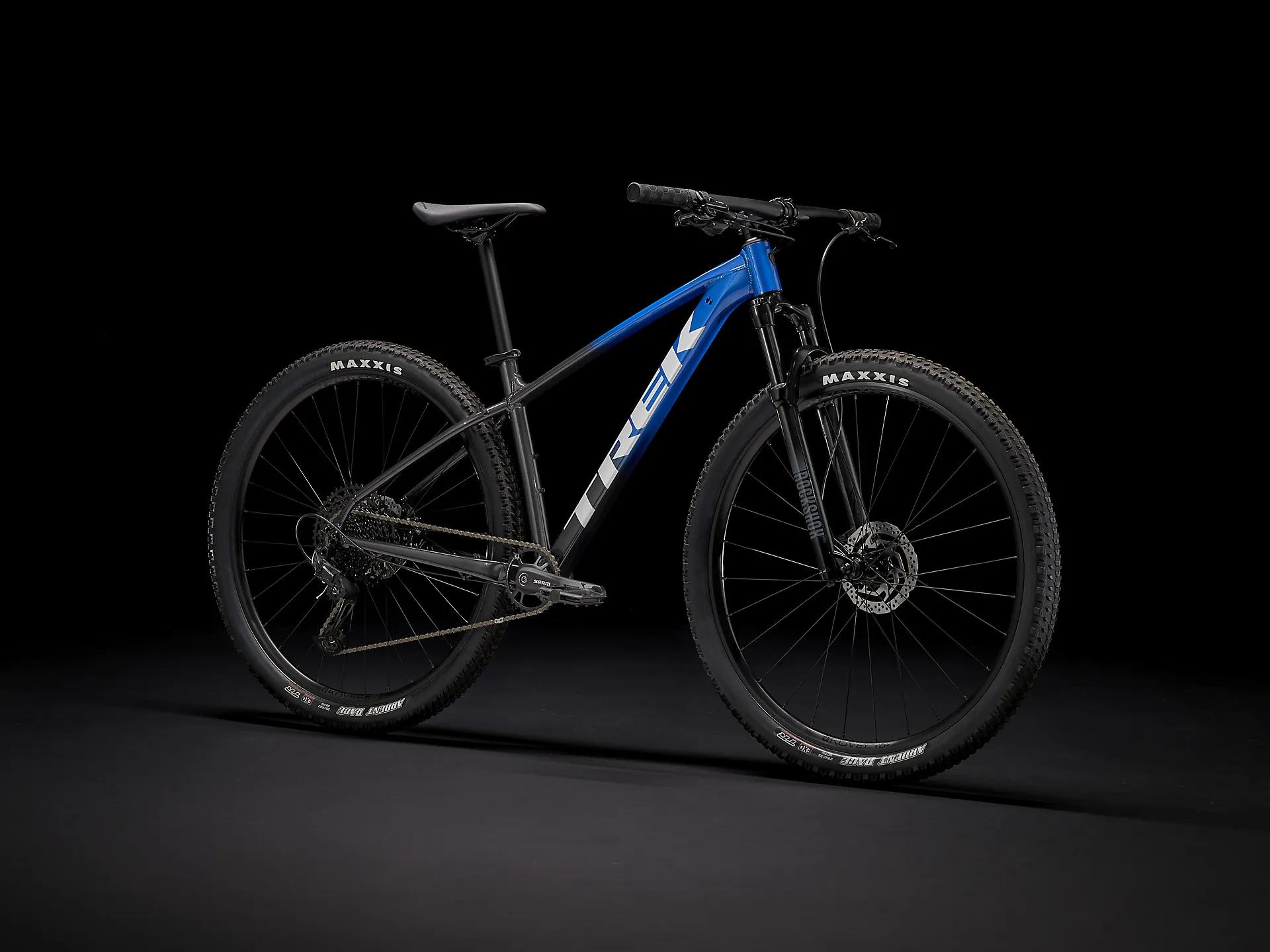

Trek Marlin 8 Gen 2

Season:2022

Brand:Trek

Code:5256192

Technical Information

You want a race-ready mountain bike with upgrades on the parts that make a big difference in performance, like a lighter, higher-quality suspension fork, wide-range 1x drivetrain and tubeless-ready wheels.

A light frame with internal cable routing, a smoother-feeling RockShox Judy Silver fork with a Solo Air spring and TurnKey hydraulic lockout, Shimano hydraulic disc brakes, tubeless-ready Bontrager Kovee wheels and a simple 1x12 drivetrain that ditches the front derailleur for less clutter and easier operation. The wide-range 11-50 cassette gives you all the gears you need for clawing up climbs and blazing down descents.

The tubeless-ready wheels, RockShox suspension, wide range of gearing and quality parts make it an outstanding choice for new mountain bikers who know they want a serious bike for their money. It’s fully capable of taking on big trail adventures and XC races.

This is one of our most popular bikes for good reason. You get all the value, plus all the versatility – it's a totally race-worthy mountain bike, with rear rack mounts if you use it for commuting too
The RockShox fork's Solo Air spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring
Setting your wheels up tubeless reduces the overall weight of your bike and the chances that you’ll get a flat
The 1x drivetrain gives you all the gears you need, and none you don’t
The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount

*spec applies to all sizes unless otherwise noted

Frameset

Frame	Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
*Fork	Size: XXS , XS RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100mm QR, 80mm travel
*Fork	Size: S , M , ML , L , XL , XXL RockShox Judy Silver, Solo Air spring, rebound adjust, TurnKey hydraulic lockout, 100mm QR, 100mm travel
Max compatible fork travel	100mm (XS & S: 490mm axle-to-crown, M & up: 509mm axle-to-crown)

Wheels

Hub front	Formula DC-20 LW, alloy, 6-bolt, 5x100 mm QR
Hub rear	Formula DC-22LW, 6-bolt, Shimano 8/9/10 freehub, 135x5 mm QR
Rim	Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
Spokes	14 g stainless steel
*Tyre	Size: XXS Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 26x2.40"
	Size: XS , S Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 27.5x2.35"
	Size: M , ML , L , XL , XXL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.35"
	Size: M , ML , L , XL , XXL Maxxis Ardent Race, tubeless, EXO casing, folding bead, 60tpi, 29x2.20"
Max tyre size	Frame: 29x2.20" (XS & S: 27.5x2.4") Fork: See manufacturer

Drivetrain

Shifter	SRAM SX Eagle, 12-speed
Rear derailleur	SRAM SX Eagle
*Crank	Size: XXS SRAM SX Eagle, 30T steel ring (49mm chainline), 155mm length
	Size: XS , S , M SRAM SX Eagle, 30T steel ring (49mm chainline), 170mm length
	Size: ML , L , XL , XXL SRAM SX Eagle, 30T steel ring (49mm chainline), 175mm length
Bottom bracket	Truvativ Powerspline, 73 mm, threaded cartridge, 118 mm spindle
Cassette	SRAM PG-1210 Eagle, 11-50, 12-speed
Chain	SRAM SX Eagle, 12-speed
Pedal	VP-536 nylon platform
Max. chainring size	1x/2x: 34T, 3x: 42T

Components

Saddle	Bontrager Arvada, steel rails, 138 mm width
*Seatpost	Size: XXS Bontrager alloy, 31.6mm, 12mm offset, 300mm length
	Size: XS , S , M Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
	Size: ML , L , XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length
	Size: ML , L , XL , XXL Bontrager alloy, 31.6 mm, 12 mm offset, 400 mm length
*Handlebar	Size: XXS , XS Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
*Handlebar	Size: S , M , ML , L , XL , XXL Bontrager alloy, 31.8 mm, 5 mm rise, 720 mm width
Grips	Bontrager XR Trail Comp, nylon lock-on
*Stem	Size: XXS Bontrager alloy, 31.8mm, Blendr compatible, 7 degree, 35mm length
	Size: XXS , XS Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length
	Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length
	Size: M Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length
	Size: ML , L Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length
	Size: XL , XXL Bontrager alloy, 31.8 mm clamp, Blendr-compatible, 7-degree, 90 mm length
Head set	Semi-integrated, 1-1/8"
Brake	Shimano MT200 hydraulic disc
*Brake rotor	Size: XXS , XS , S , M , ML , L , XL , XXL Shimano RT26, 6-bolt,160 mm
*Brake rotor	Size: L , XL , XXL Shimano RT26, 6-bolt,180 mm

Weight

Weight	M - 13.20 kg / 29.1 lbs (with tubes)
Weight limit	This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

Sizing Information

All measurements provided in cm unless otherwise stated.

Frame size number	Frame size letter	Wheel size	A — Seat tube	B — Seat tube angle	Effective seat tube angle	C — Head tube length	D — Head angle	E — Effective top tube	F — Bottom bracket height	G — Bottom bracket drop	H — Chainstay length	I — Offset	J — Trail	K — Wheelbase	L — Standover	M — Frame reach	N — Frame stack
13.5	XXS	26"	34.3	73.4	73.4	9	69.1	54.4	28.6	5.7	43.8	4.2	8.54	104.8	65.2	37.5	56.6
13.5	XS	27.5"	34.3	73.5°	73.5°	9.0	69.3°	54.4	29.2	5.8	43.8	4.2	8.8	104.9	65.8	37.6	56.5
15.5	S	27.5"	36.8	73.5°	73.5°	9.0	69.3°	55.5	30.2	4.8	43.8	4.2	8.8	106.6	68.6	38.5	57.4
17.5	M	29"	41.9	71.9°	73.0°	9.0	69.5°	60.2	31	5.8	43.8	4.2	9.3	110.0	74.8	41.8	60.2
18.5	ML	29"	44.4	71.9°	73.0°	9.0	69.5°	61.8	31	5.8	43.8	4.2	9.3	111.6	75.8	43.4	60.2
19.5	L	29"	47.0	71.9°	73.0°	10.0	69.5°	63.8	31	5.8	43.8	4.2	9.3	113.7	75.7	45.1	61.1
21.5	XL	29"	52.1	71.9°	73.0°	12.0	69.5°	65.9	31	5.8	43.8	4.2	9.3	115.9	76.9	46.6	63.0
23.0	XXL	29"	55.9	71.9°	73.0°	12.0	69.5°	67.3	31.1	5.8	43.8	4.2	9.3	117.3	80.4	48.0	63.0
