The Madone SL 6 offers legendary speed, cutting-edge tech and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races.

Trek

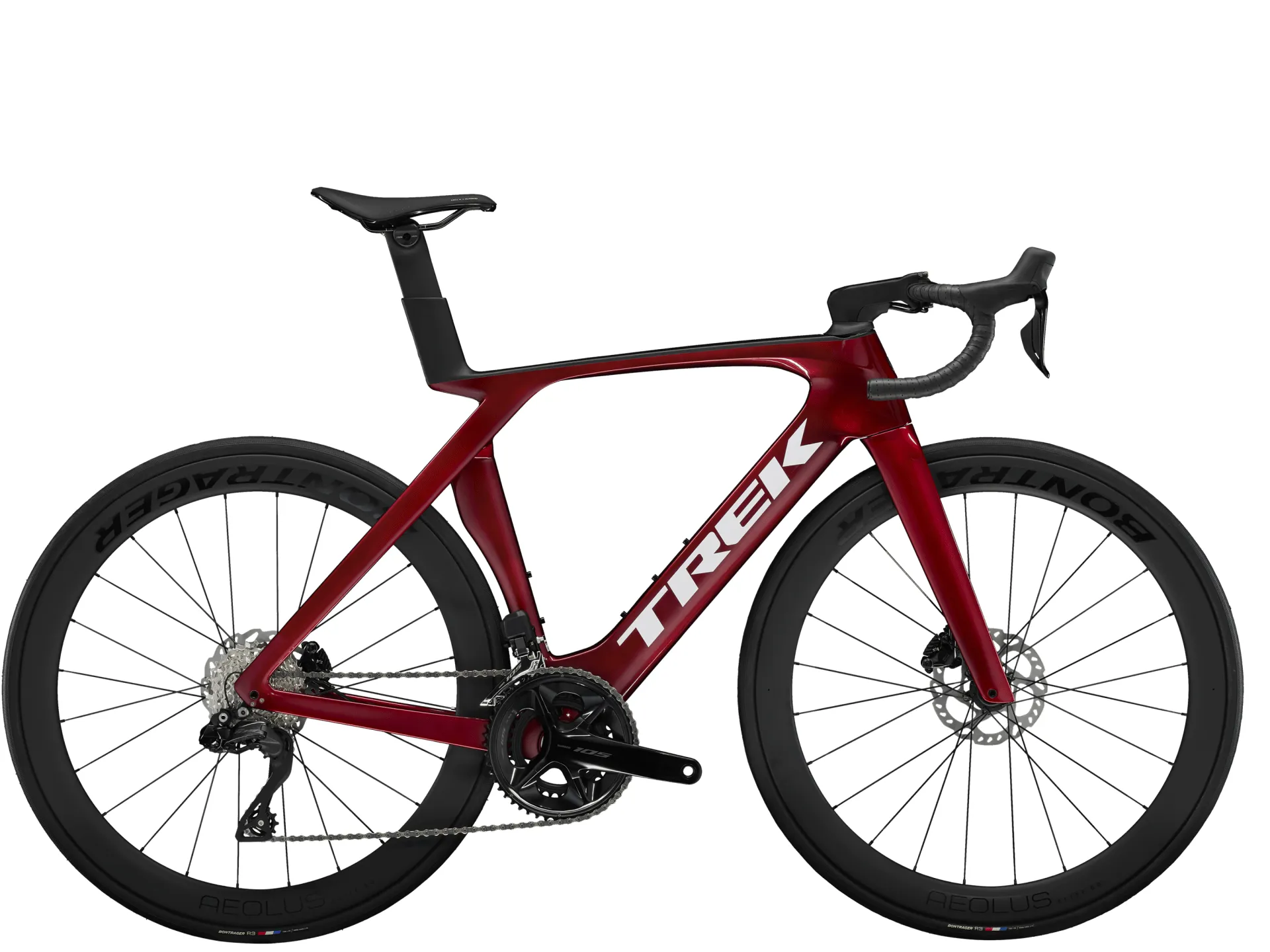

Trek Madone SL6 Carbon Road Bike in Crimson

£4,399.00 £5,625.00 22% off

Size Guide

Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

You have 30 calendar days to return an item from the date you received it.
To be eligible for a return, your item must be unused and in the same condition that you received it. Your item must be in the original packaging.
Your item needs to have the receipt or proof of purchase.

Once we receive your item, we will inspect it and notify you that we have received your returned item. We will immediately notify you on the status of your refund after inspecting the item.

If your return is approved, we will initiate a refund to your credit card (or original method of payment).

You will receive the credit within a certain amount of days, depending on your card issuer's policies.

Shipping

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non refundable.

Trek Madone SL6 Carbon Road Bike in Crimson

Season:2024

Brand:Trek

Code:41466RED

The Madone SL 6 offers legendary speed, cutting-edge tech and unbelievable ride quality in a 500 Series OCLV Carbon package that keeps things light and quick for fast road rides and races.

IsoFlow technology smooths out bumps in the road while lowering weight and offering an aerodynamic advantage over your competition, and a wealth of super-speedy features like our newest Kammtail aero shapes, an economical Shimano 105 Di2 electronic drivetrain, carbon wheels and invisible hose routing make for a race machine that feels just as fast as it looks.

Features:

A full OCLV Carbon frame paired with the magic of an electronic Shimano 105 Di2 drivetrain provides a premium ride
IsoFlow technology helps the seat mast and saddle flex for a more comfortable ride while also improving frame aerodynamics and shaving weight
Flared Bontrager RSL Aero Handlebar is comfortable in the drops, improves aerodynamics and looks super sleek
Deep Bontrager Aelous Elite 50 carbon wheels cut through the wind and lighten your ride
A Shimano 105 Di2 drive provides affordable electronic performance

Technical Information

Frame
500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, 142x12 mm thru axle
Fork
Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
Weight
56 – 8.40 kg/18.52 lb
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Charger
Charging cable included
Shifter
Shimano 105 R7170, 12-speed
Front derailleur
Shimano 105 R7150 Di2, braze-on, down swing
Rear derailleur
Shimano 105 R7150 Di2, 34T max cog
Crank
Size: 47
Shimano 105 R7100, 50/34, 165 mm length
Size: 50, 52
Shimano 105 R7100, 50/34, 170 mm length
Size: 54, 56
Shimano 105 R7100, 50/34, 172.5 mm length
Size: 58, 60, 62
Shimano 105 R7100, 50/34, 175 mm length
Bottom bracket
Praxis, T47 threaded, internal bearing
Cassette
Shimano 105 7101, 11-34, 12-speed
Chain
Shimano SLX M7100, 12-speed
Max. chainring size
1x: 50T, 2x: 54/40
Wheel front
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
Wheel rear
Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50 mm rim depth, Shimano 11-speed freehub, 142x12 mm thru axle
Skewer front
Bontrager Switch thru-axle, removable lever
Skewer rear
Bontrager Switch thru-axle, removable lever
Tyre
Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
Max tyre size
32mm (as measured, see manual for details)
Saddle
Size: 47, 50, 52
Bontrager Aeolus Comp, steel rails, 155 mm width
Size: 54, 56, 58, 60, 62
Bontrager Aeolus Comp, steel rails, 145 mm width
Seatpost
Madone aero carbon seatpost, integrated light mount, 0mm offset, long length
Handlebar
Size: 47
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 35 cm control width, 38 cm drops width
Size: 50, 52
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 37 cm control width, 40 cm drops width
Size: 54, 56
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 42 cm width
Size: 58, 60, 62
Bontrager RSL Aero, OCLV Carbon, 31.8 mm, Di2 routing, 80 mm reach, 124 mm drop, 41 cm control width, 44 cm drops width
Handlebar tape
Bontrager Supertack Perf tape
Stem
Size: 47
Trek RCS Pro, -7-degree, 70 mm length
Size: 50
Trek RCS Pro, -7-degree, 80 mm length
Size: 52, 54
Trek RCS Pro, -7-degree, 90 mm length
Size: 56, 58
Trek RCS Pro, -7-degree, 100 mm length
Size: 60, 62
Trek RCS Pro, -7-degree, 110 mm length
Brake rotor
Shimano RT70, CentreLock, 160 mm
Rotor size
Max brake rotor sizes: 160 mm front and rear
